A Transformation in Tile

Michael Popke Headshot
1 J 322 Aq F1 Garden Delight0350 Lg
All photos courtesy Macduff Everton

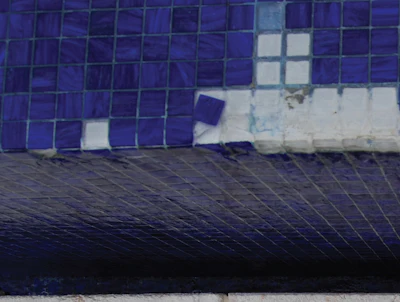

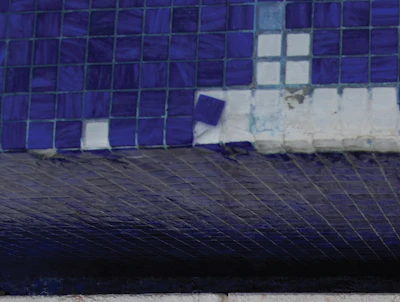

These two images show the state of delamination of both the slate panels covering the front wall and the tile covering the pool and spa. According to the homeowner, the lawsuit was triggered when the builder suggested the remedy would be, β€œWe’ll just continue to repair the tile forever.”These two images show the state of delamination of both the slate panels covering the front wall and the tile covering the pool and spa. According to the homeowner, the lawsuit was triggered when the builder suggested the remedy would be, β€œWe’ll just continue to repair the tile forever.”

1 M 322 Aq F1 Before Dsc 0022 Lg

Steve Lambert was the right guy in the right place at the right time.

Back in 2008, the longtime landscape architect and pool builder, who owns Garden Lights Landscape & Pool Development in Orinda, Calif., was called to testify as an expert witness in a homeowner’s lawsuit. According to the homeowner’s complaint, the Italian glass tile the original pool builder installed throughout the interior and exterior of a long and narrow hillside pool kept popping off, even though the pool was less than two years old.

Lambert spent a lot of time conducting investigative work at the pool, which is nestled in the hills of the posh Berkeley Hills neighborhood of Berkeley, Calif. As things turned out, the tile β€” riddled with impurities β€” was not made for a water environment, which is why tile delamination quickly set in. Lambert discovered other design flaws, too. They included a vanishing-edge basin that was so deep that a net was installed to catch anybody who fell out of the pool, and a vanishingedge clad in slate so thick it was too heavy to adhere to the concrete wall (see image).

With this level of malpractice, the plaintiff’s case was straightforward enough, but it had an interesting twist at the end. After seeing Lambert’s testimony, the homeowner asked him to take on the renovation and make the project right. After the disagreeable experience of watching the original installation crumble into dust, Lambert says, β€œthe homeowner came up and told me, β€˜You’re the only one I trust to do this job.’

β€œSo I asked my lawyer, β€˜Can I do that?’

β€œAnd he said, β€˜Sure.’ So I did.”

That project marked the first time Lambert used Lightstreams Glass Tile, a relatively new product at the time. Lambert connected with Lightstreams Inventor David Knox and collaborated on a comprehensive glass tile solution: They decided to wrap the entire pool and built-in spa in Lightstreams tile, replacing the original crumbling tile and slate with handcrafted glass tiles specially made for underwater use.

β€œI’d seen pictures of the tiles but hadn’t actually used them yet,” Lambert recalls. β€œBut since then, we’ve probably used them on 35 or 40 pools.”

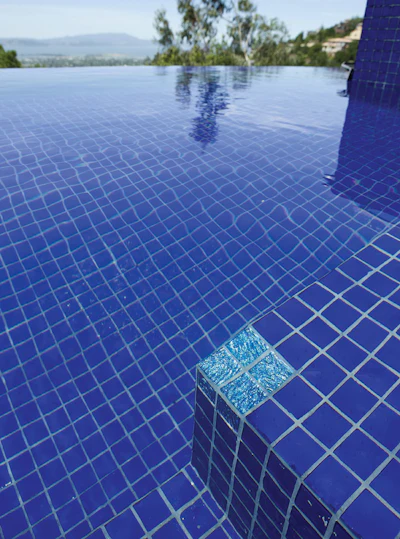

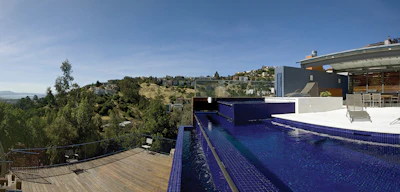

While most of the project is clad in the solid and saturated side of Lightstreams’ Renaissance Royal Blue glass tiles (with the corner steps in Aegean Sea Jewel glass accents), a highlight of the pool is the subtle river mosaic on the vanishing-edge wall using the iridescent side of the Renaissance Royal Blue tiles and the iridescent side of Intense Blue tiles. The shimmering β€œriver” flows over the wet wall, onto the floor of the catch basin and reappears on the outer wall to create a compelling design feature both up close and from a distance β€” as well as from the pool itself looking over the edge and down the wet wall.

β€œI was on the site and doing my sketches for the mosaic, and Steve did the engineering,” says Knox, who worked closely with Lambert and tape mounted each tile. His pencil drawings assisted the homeowner in better understanding the concept the pair wanted to execute. β€œBut it wasn’t just the tile that was the problem on this project.”

β€œI don’t do a whole lot of [all-tile projects], but whenever I do, we waterproof the whole thing, because there’s a lot of surface that’s depending on the tile to be the waterproofing unit,” Knox says. β€œA double layer of waterproofing is definitely the way to go.β€β€œI don’t do a whole lot of [all-tile projects], but whenever I do, we waterproof the whole thing, because there’s a lot of surface that’s depending on the tile to be the waterproofing unit,” Knox says. β€œA double layer of waterproofing is definitely the way to go.”

WALL RAISING AND WATERPROOFING

When the homeowner gave Lambert the go-ahead to make things right, after all the homeowner had been through, Lambert knew he had to deliver β€” which is one reason why he opted to have Knox onsite to help oversee the process.

β€œI was determined to not have any problems with this pool,” Lambert says, adding that in addition to chipping out all the old tile (that hadn’t already fallen off) and replacing it with new, he also needed to ensure the rest of the pool met a higher standard of design as well. β€œMy solution for the basin being so far down was to raise the basin wall and make the client feel much more comfortable in case anybody happened to fall off the edge. The main reason was safety.”

Additionally, Lambert and his crews needed to strip out the pool’s original waterproofing which was not effective, and apply a Laticrete product instead.

β€œThe original pool builder wouldn’t tell us what waterproofing material he used. Whatever he used for waterproofing β€” and it might have been an okay product that just was installed wrong β€” it wasn’t making a good connection to the gunite, and big patches of tile would have continued to fall off,” Lambert says. β€œOne of the reasons the client sued the builder was because the builder said, β€˜Well, we’ll just continue to repair the tile forever.’ That’s not the answer.”

But effective waterproofing was the answer, and now Lambert won’t do an all-tile project without taking that extra step.

β€œI don’t do a whole lot of them, but whenever I do, we waterproof the whole thing, because there’s a lot of surface that’s depending on the tile to be the waterproofing unit,” he says. β€œA double layer of waterproofing is definitely the way to go.”

All told, renovating the pool took about three months, according to Lambert. But because the deck and outdoor doubleantique Jerusalem limestone also needed extensive work, the entire project took about six months to complete. What’s more, the steep hillside location required that all materials be brought in by hand and limited the number of crew workers that could be onsite at any given time.

1 P 322 Aq F1 Lightstream5 Lg

'TAKE YOUR BREATH AWAY'

For Lambert, this was a high-end project β€” the tile renovation work alone cost about $100,000 β€” but he says even a small amount of tile can dress up a pool.

Knox agrees, β€œWe’ve got projects on our website that are straight water lines with $2,000 or $4,000 worth of tile. Even if you just use a little bit, you can create a work of art, and a lot of our clients realize that,” adding that many orders are for 100 or 150 sq. ft. of tile to give the pool added elegance.

β€œIt’s like having a gorgeous necklace with a black dress,” he says. β€œYou don’t need a whole lot of it, and that’s what I tell customers. In fact, having too much of it can make things look clumsy.”

Homeowners are willing to pay for quality and uniqueness, Lambert adds, and tile art on a pool provides it. That certainly was the case with the Berkeley Hills renovation project, which all these years later remains one of the most challenging in Lambert’s portfolio β€” and among his favorites. Not only was he able to right the project’s original wrongs, but he also began using a product that, over the years, had helped take many of his projects to another level.

β€œIt just adds magic to the pool,” Lambert says. β€œI’ve got some pools that the tile line alone will take your breath away when you look at it for the first time.”


This article first appeared in the March 2022 issue of AQUA Magazine β€” the top resource for retailers, builders and service pros in the pool and spa industry. Subscriptions to the print magazine are free to all industry professionals. Click here to subscribe.
