Pool Efficiency Challenge: 150,000 Gallons, Heated Year-Round

2 G 222 Aq Presidential 26 Lg
All photos courtesy Patriot Pool Heating

Not far from Philadelphia International Airport, Presidential City, a luxury apartment complex, offers an attractive option for commuters looking to spend less time on the road each day. This apartment complex offers everything that young professionals could want, including a fitness center with three swimming pools, two hot tubs and five reflecting pools, bodies of water totaling 150,000 gallons, which are heated year-round.

However, although the aquatic facilities are impressive, in recent years staff noticed the dazzling amenities were not being used to their full potential.

“We realized that, although our residents and leasing staff appreciated the pools being filled all year long, they were not being utilized during the winter,” says Sarina Rose, senior vice president of development for Post Brothers, the real estate developer that owns the property, and has made a point to set their properties apart with amazing outdoor facilities. “The residents do, however, use the Jacuzzis. In an effort to save energy and maintain the pools at just above freezing temps over the winter, we explored investing in a new pool heating system.”

That’s when Tom Soukup, founder of Patriot Pool Heating, got involved. “Management at Presidential City called us mid-2020, explaining the changes that they wanted to make, and that the existing pool heaters were underperforming and consuming more natural gas than expected,” he says. “We responded to the service call and found that all of the units, which had already been replaced at least once in seven years, were simply no longer up to the task.”

Soukup comes from a commercial and residential hydronic heating background; a life spent making water hot in the New York, New Jersey and Pennsylvania market. “We’ve conducted new and retrofit pool heating projects for retirement facilities, condo and apartment complexes, resorts, hotels and water parks,” says Soukup. “The method we employ, utilizing stainless steel condensing boilers, has proven time and again to reduce maintenance, lower fuel bills and provide greatly improved comfort and system longevity. It’s a departure from the norm in the aquatics industry, but it works exceptionally well, and we have a long list of clients who’ll attest to that.”

There’s no single key to successfully creating a pool heating system that will function for decades, but it definitely starts with design. Choosing equipment built for longevity is also critical, and eliminating contact between corrosive pool water and the heating element is of utmost importance.

THAT ESCALATED QUICKLY

Initially, Patriot Pool Heating was brought in while all bodies of water at Presidential City were maintained at a comfortable temperature during the winter. The new goal was to maintain at 102°F in the hot tubs year-round, and for the swimming pools to be maintained at 84°F in the summer and 40°F in the winter.

The six existing pool heaters ranged from 400 MBH (1 MBH = 1000 BTU/h) to 1.2 MMBH, and had been failing at a rate of one every 18 months. Luckily, there was some redundancy built into the system so the pools and spas remained at temperature, but maintenance costs were extraordinary.

“Management expected us to fix the existing pool heaters, but that wasn’t possible,” says Soukup. “The biggest issue was the lack of hydraulic separation. Beyond that, only one of the six pool heaters was a condensing model. Yet, in the winter, 40°F water was coming in. The heat exchangers were constantly condensing when they weren’t designed to. Additionally, the pool’s salt content was destroying the copper heat exchangers at an alarming rate. We temporarily fixed enough of the issue to buy some time.”

The Post Brothers’ number one request was that the pools remain at temperature, without fail — it was imperative that tenants not be inconvenienced. Once given the nod to proceed with a replacement, Soukup began the design process.

The pools at Presidential City provide aesthetic reflections just outside the community’s large fitness facility.The pools at Presidential City provide aesthetic reflections just outside the community’s large fitness facility.

ROBUST DESIGN NEEDED

“We rely on our manufacturer’s representatives for pre-sales support when needed,” says Soukup. “We purchase our boilers and various system components from Dave Raabe of ROI Marketing. He has always provided high levels of support on the front end. With his help, and our familiarity with these systems, we need minimal post-support. An ounce of prevention is worth a pound of cure.”

Before starting the design, Post Brothers insisted that the most important results of the replacement were reliability, redundancy and efficiency.

To begin the design phase, two separate calculations were needed: one for the hot tubs and one for pools. Considerations included the volume of the water, the surface area of the water, ambient air temperature and wind factor. Combined with the desired setpoint of the hot tubs and the pools, these figures provide a maximum heat loss. Because Patriot Pool Heating planned to use multiple modulating Alpine boilers made by U.S. Boiler Company, the vast difference between the heat load in summer and winter wasn’t a concern.

After deducting the efficiency loss across the 10 titanium shell-and-tube heat exchangers, Soukup found that he could provide the heat needed with four, 800 MBH Alpine condensing boilers. Combined, the boilers have an input of 3.2 MMBH, but because each boiler has five stages of input, the system can fire as low as 160,000 BTUH in situations where the call for heat is minimal. Unlike the existing pool heaters, which operated independently of one another and were dedicated to specific bodies of water, the four boilers operate together to produce heat. The bank of heat exchangers distribute heat from the boiler loop to the pools for much greater redundancy.

“The new design is inherently more efficient and more dependable than the original,” says Rich Zalepa, technical services manager for Patriot Pool Heating.

“Patriot provided a design, along with a cost analysis, including energy savings and lower maintenance costs,” says Rose. “We realized that the payback for the new system would be less than four years. It became obvious that it was the right time for us to make this investment.”

NO DOWN TIME

Patriot Pool Heating replaced the entire pool heating system over two weeks in the spring of 2021.

The project was complicated by the fact that pools and spas had to remain at setpoint temperature throughout the project. But the large size of the pump room meant that the old units could remain in service while the new system was being assembled. Soukup and Zalepa had also prefabricated much of the boiler system at their shop. Even better, the hot weather alone kept the pools above setpoint, though the hot tubs still needed heat.

The four boilers are piped into a single, primary loop, delivering 140°F water to the secondary loop, leading to the 10, 360,000 BTUH titanium heat exchangers. The larger bodies of water require more heat than a single exchanger can provide, so several of the heat exchangers are on a manifold to serve these loads.

“We use both U.S. Boiler’s K2 and Alpine boilers for their reliability and ease of installation and service,” says Soukup. “When we need a great deal of capacity, we generally install the Alpine. It’s available in models from 80 to 800 MBH, so we can serve very large jobs without using a dozen units.”

The beauty of the common boiler system is that it can respond to any call for heat very accurately, whether a single hot tub is calling for heat or if all bodies of water call at once. Once the lead boiler reaches 50% firing rate, the second boiler will fire at low input and increase its capacity as needed, and so on. The Alpine’s staging controls rotate the “lead” boiler on a regular basis, ensuring that runtime hours are balanced across all the units. Unlike the original system, this simplifies service and extends boiler service life.

“In this system, the heat exchanger takes the abuse — which consists of condensate, salt or chlorine — not the heating appliance,” says Zalepa. “They’re titanium, so they withstand the harsh environment very well. In the unlikely event of a failure, we stock them, so we can be responsive same-day.”

The system provides pinpoint accuracy in addition to longevity. Temperature in all of the pools and spas are maintained within one degree of setpoint, regardless of outdoor conditions.

“The maintenance and facility team are very happy with the new system,” says Rose. “There was a considerable amount of apprehension about doing the work and taking some portion of the facility out of service, but Patriot made sure that the pools were always open and at temperature throughout the project.”

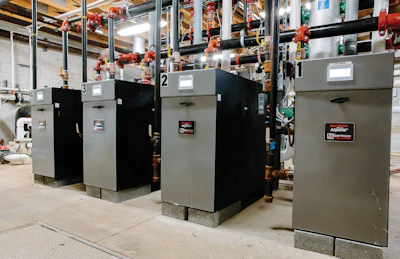

Four Alpine condensing boilers were used in the new pool heating system.Four Alpine condensing boilers were used in the new pool heating system.

FOR YEARS TO COME

“Reliability, accuracy and longevity were very important,” says Zalepa. “Another big consideration was the fuel bill. The previous year’s gas bill for the pool area was $140,000, and the projected cost to operate the new system for a full year is $80,000. A 43% savings is nothing to scoff at, especially when there are a lot of zeroes involved.”

The new system has been running for six months without any problems. Soukup is already in the process of designing a second, much larger system for the same real estate group.

“Presidential City features 5,000 sq. ft. of water surface,” says Soukup. “The next one will be twice that size. If we weren’t so confident in the systems we create, I’d have trouble sleeping at night. That’s simply not the case. We trust the math, trust our system components, and trust our ability to install them correctly.”


This article first appeared in the March 2022 issue of AQUA Magazine — the top resource for retailers, builders and service pros in the pool and spa industry. Subscriptions to the print magazine are free to all industry professionals. Click here to subscribe.
