SMART POOL-ACCESS PROTECTION — HOME OR AWAY
The SwamCam Door & Window Sensor is a wireless, app-controlled smart entry sensor for pool-safety applications and certified by ETL to the UL 2017 Standard. SwamCam sensors meet pool inspection requirements where UL 2017 entry alarms are required or accepted, subject to local code. Compact, sleek and battery-powered, each sensor requires no electrical wiring at the protected opening and blends discreetly into the home. Protect doors, windows, gates and other access points leading to the pool area with audible alarms, real-time status monitoring, and smartphone notifications.
TWO WAYS TO PROTECT YOUR CLIENT'S POOL
ADD TO A SWAMCAM CAMERA SYSTEM
Have a SwamCam Camera System or planning to purchase one? Add one or more Door & Window Sensors to your customer's existing or new system.
When a protected door, window or gate is opened without first using the Bypass function:
- An audible alarm sounds inside the home
- The SwamCam camera sounds an alarm outside at the pool area
- A real-time alert is sent to your customer's smartphone
- Multiple doors, windows, and gates can be protected from one system
USE WITH THE SWAMCAM SENSOR HUB
For a dedicated pool-access alarm system without a camera, pair SwamCam Door & Window Sensors with the SwamCam Sensor Hub.
When a protected opening is accessed:
- An audible alarm sounds from the Hub inside the home
- A real-time alert is sent to your customer's smartphone
- Multiple doors, windows and gates can be protected from one Hub
Important: SwamCam Door & Window Sensors must be paired with either a SwamCam Camera System or SwamCam Sensor Hub and cannot operate independently.
KNOW WHAT'S HAPPENING — FROM ANYWHERE
The SwamCam mobile app gives homeowners convenient access to their pool-access sensors and system status.
WITH THE APP YOU CAN:
- View the real-time open/closed status of each sensor
- Get alerts when a protected opening triggers an alarm
- Receive low-battery notifications
- Monitor and manage multiple sensors
- Add additional sensors as needed
- Temporarily override protection during parties, gatherings, or frequent pool access
CONVENIENT BYPASS FUNCTION
Authorized users can temporarily pass through a protected opening without triggering an alarm.
- Press the Bypass button for 15 seconds to open and close the protected door, window or gate
- When entering from outside without Bypass, a 5-second entry delay allows time to close the door or press Bypass
The sensor automatically returns to normal protection after the bypass period.
TAKE YOUR PROTECTION WITH YOU
IDEAL FOR VACATION HOMES & RENTAL PROPERTIES
The SwamCam Sensor Hub System can also provide a convenient pool-access safety solution for vacation homes and rental properties. Bring the Hub and sensors with you for added pool-access protection at doors, windows or gates when existing barriers or safety equipment are unfamiliar. For temporary installations, 3M removable adhesive tape or similar removable mounting products may be used where appropriate for clean removal from most surfaces.
COMPACT. WIRELESS. EASY TO INSTALL.
No electrical wiring at the opening. No complicated installation.
The compact sensor and magnet mount directly to the protected door, window or gate, providing discreet pool-access protection without compromising the appearance of the home.

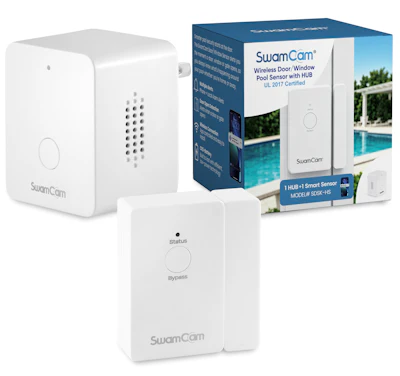

WHAT'S IN THE BOX
- 1 SwamCam Door/Window Sensor
- 1 Sensor Magnet
- 1 CR2 3V Battery
- Sensor and Magnet Mounts
SYSTEM REQUIREMENTS
Compatible Systems
SwamCam Door & Window Sensors require one of the following:
- SwamCam Camera System
- SwamCam Sensor Hub
Mobile App
- Android 5.0 or later
- iOS 11.0 or later
TECHNICAL SPECIFICATIONS
DOOR & WINDOW SENSOR
Operating Temperature: -4°F to 140°F
Wireless Communication: Zigbee
Battery: 1 × CR2 3V battery
System Capacity: Up to 19 sensors may be connected to a SwamCam Sensor Hub.
When connected to a SwamCam Camera System, the system supports up to 19 total accessory devices, including Door & Window Sensors, keypads, indoor alarms and other compatible accessories.
SWAMCAM SENSOR HUB
Wireless Communication: Wi-Fi 802.11 b/g/n, 2.4 GHz + Zigbee
Audible Alarm: 90+ dBA at 10 feet
Sensor-to-Hub Range: Up to 100 feet unobstructed line-of-sight*
Operating Temperature: -4°F to 140°F
Power: AC 110–240V
*Actual wireless range may vary depending on walls, building materials, interference, sensor placement and other environmental conditions.
COMPLIANCE & SAFETY
- Certified by ETL to the UL 2017 Standard for Self-Monitored Entry Alarms
- Satisfies pool inspection requirements where UL 2017 entry alarms are required or accepted, subject to local codes
- Intended to supplement a multi-layered pool-safety plan, including appropriate barriers, alarms, and active adult supervision
- SwamCam products are not life-saving devices and are not a substitute for active adult supervision
Smart protection for the points of access around your customer's pool — whether they're home or away.
